■ 테드라 재질(Polyvinylfluoride)의 Gas Sampling Bag
■ Combination Valve가 리뉴얼 됨에 따라 구버전, 신버전이 랜덤으로 발송 됩니다. (3번 사진 참고)
■ Rayhope^®

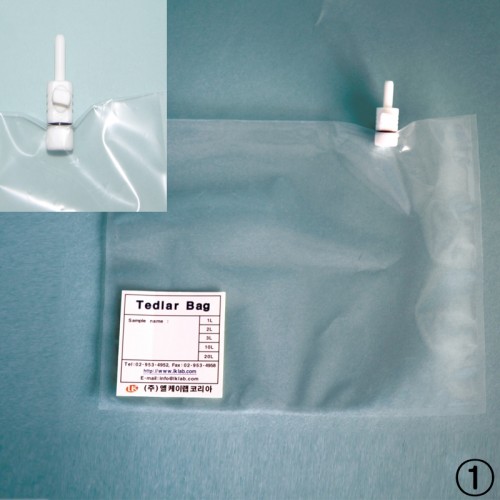

•   with PTFE Stopcock ①

  Cat. No	Model	용량	Size (w×d)
  B01-259-038	TD-TS01	1 L	250×150 mm
  B01-259-046	TD-TS02	2 L	250×200 mm
  B01-259-054	TD-TS03	3 L	250×300 mm
  B01-259-062	TD-TS05	5 L	250×400 mm
  B01-259-078	TD-TS10	10 L	350×500 mm
  B01-259-086	TD-TS20	20 L	500×500 mm
  B01-259-094	TD-TS30	30 L	510×700 mm

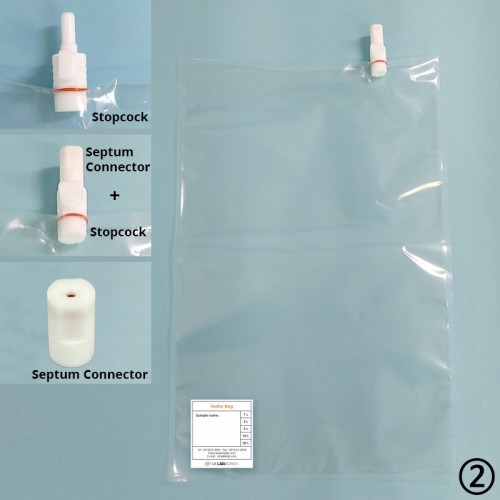

  with 1 Stopcock + 1 Septum Connector ②

  Cat. No	Model	용량	Size (w×d)
  B01-259-138	TD-SC01	1 L	250×150 mm
  B01-259-146	TD-SC02	2 L	250×200 mm
  B01-259-154	TD-SC03	3 L	250×300 mm
  B01-259-162	TD-SC05	5 L	250×400 mm
  B01-259-178	TD-SC10	10 L	350×500 mm
  B01-259-186	TD-SC20	20 L	500×500 mm
  B01-259-194	TD-SC30	30 L	510×700 mm

  • ● Stopcock & Septum 재질 : PTFE

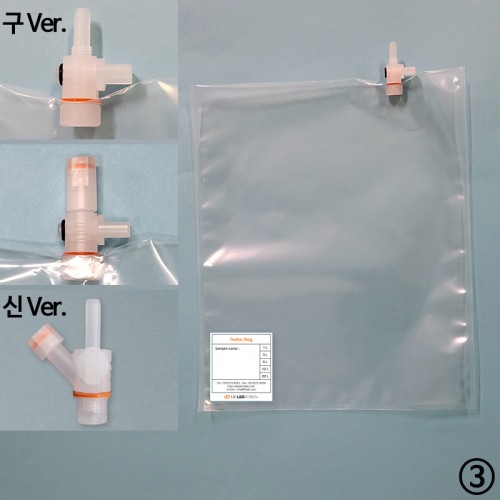

  with Combination Valve (Valve+Septum) ③

  Cat. No	Model	용량	Size (w×d)
  B01-259-238	TD-CV01	1 L	250×150 mm
  B01-259-246	TD-CV02	2 L	250×200 mm
  B01-259-254	TD-CV03	3 L	250×300 mm
  B01-259-262	TD-CV05	5 L	250×400 mm
  B01-259-278	TD-CV10	10 L	350×500 mm
  B01-259-286	TD-CV20	20 L	500×500 mm
  B01-259-294	TD-CV30	30 L	510×700 mm

  • ● Valve 재질 : Plastic
