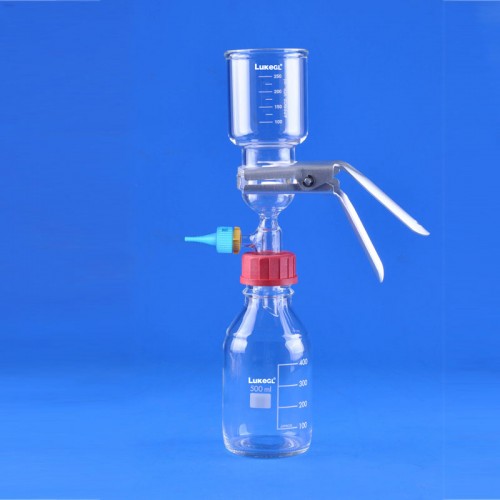

■ Borocilicate Glass 3.3
■ Φ47mm Membrane Filter용
■ GL45 Red PBT Screw Cap 부착형
■ 2 Type
    - Type 1 : Glass Fritted Support Base Set (40 ~ 60 um)
    - Type 2 : Stainless Steel Support Base Set (100 mesh)
■ 300 ml Glass Funnel & 1 L Glass Bottle 기본 포함
■ LukeGL^®

•

  Cat. No	Model	Description
  F03-503-400	8000067	Fritted Glass Support Base
  F03-503-450	8000068	Stainless Steel Support Screen

  구성 Component, 47mm Sintered Glass Base Set

  Cat. No	Model	Description
  F03-503-610	8358031	300 ml Glass Funnel ①
  F03-503-620	8358036	Aluminum Clamp, Φ47 mm ②
  F03-503-460	8358084	Glass Base for GL Screw Cap ③
  C20-83-209	KA45	Quick Disconnect Adapter ⑦
  B08-83-868	1321045	Red PBT Open Top Cap, GL45 ⑧
  J02-83-038	1334526	PTFE/Silicon Gasket with Hole ⑨
  B08-985-139	414321940	Clear Bottle/Laboratory, Simax®/1 L

  구성 Component, 47mm SUS Support Glass Base Set

  Cat. No	Model	Description
  F03-503-610	8358031	300 ml Glass Funnel ①
  F03-503-620	8358036	Aluminum Clamp, Φ47 mm ②
  F03-503-470	8358085	GL45 Glass Base for Support Screen ④
  F03-503-640	8358038	SUS 100 Mesh Screen, Φ47 mm ⑤
  F03-503-650	8358040	PTFE Gasket, Φ47 mm ⑥
  C20-83-209	KA45	Quick Disconnect Adapter ⑦
  B08-83-868	1321045	Red PBT Open Top Cap, GL45 ⑧
  J02-83-038	1334526	PTFE/Silicon Gasket with Hole ⑨
  B08-985-139	414321940	Clear Bottle/Laboratory, Simax®/1 L

  Optional Glass Funnel

  Cat. No	Model	용량	Size
  F03-503-680	8358033	500 ml ⑩	Φ80×h180 mm
  F03-503-690	8358034	1 L ⑪	Φ113×h145 mm

  Vacuum Filter Holder 용도

  ● Glass Filter Support
  - Bacteriological analysis of water (using 47 mm sterile membrane filters) Analysis of suspended solids in water (using 47 mm depth filters)
  ● PTFE-Faced Funnel and base
  - Bacteriological analysis applications where autoclaving filter holder with membrane in place needed
  ● SUS Filter Support
  - Particulate contamination analysis of oils and hydraulic fluids by gravimetric or particulate counting methods
  - Exfoliative cytology applications
