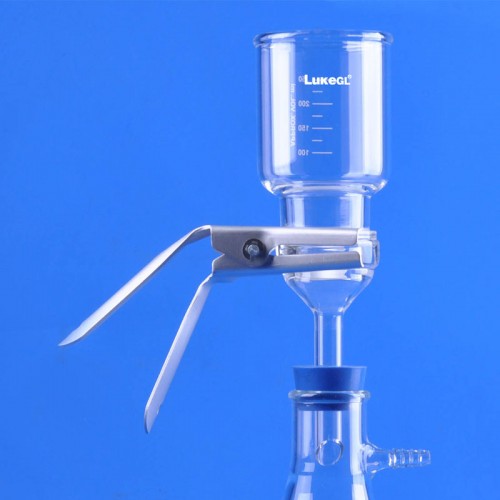

■ Borocilicate Glass 3.3
■ Ø47 mm Membrane Filter용
■ 3 Type
    - Type 1 : Glass Fritted Support Base Set (40 ~ 60 um)
    - Type 2 : PTFE Faced Glass Fritted Support Base Set (40 ~ 60 um)
    - Type 3 : Stainless Steel Support Base Set (100 mesh)
■ 300 ml Glass Funnel 기본 포함
■ 여과병은 별도 구매
■ LukeGL^®

•

  Cat. No	Model	Description
  F03-503-200	8000031	Φ47 mm Sintered Glass Base Set
  F03-503-225	8000035	Φ47 mm PTFE Faced Glass Base Set
  F03-503-250	8000038	Φ47 mm SUS Support Base Set

  구성 Component, 47mm Sintered Glass Base Set

  Cat. No	Model	Description
  F03-503-610	8358031	300 ml Glass Funnel ①
  F03-503-620	8358036	Aluminum Clamp, Φ47 mm ③
  F03-503-630	8358037	Sintered Glass Base Φ47 mm ④
  F03-503-670	8358042	Silicon Stopper, (상 Φ40 / 하 Φ33 mm) / 1L Flask용 ⑦

  구성 Component, 47mm PTFE Faced Glass Base Set

  Cat. No	Model	Description
  F03-503-613	8358032	300 ml Glass Funnel, PTFE Faced ②
  F03-503-620	8358036	Aluminum Clamp, Φ47 mm ③
  F03-503-633	8358044	Sintered Glass Base, PTFE Faced ⑤
  F03-503-670	8358042	Silicon Stopper, (상 Φ40 / 하 Φ33 mm) / 1L Flask용 ⑦

  • ● 테프론이 Funnel하부와 Glass Base상부에 코팅되어져 있음
  • ● 8358042는 1L Flask용
  구성 Component, 47mm SUS Support Base Set

  Cat. No	Model	Description
  F03-503-610	8358031	300 ml Glass Funnel ①
  F03-503-620	8358036	Aluminum Clamp, Φ47 mm ③
  F03-503-640	8358038	SUS 100 Mesh Screen, Φ47 mm ⑧
  F03-503-650	8358040	PTFE Gasket, Φ47 mm ⑨
  F03-503-660	8358039	SUS Support 용 Glass Base Φ47 mm ⑥
  F03-503-670	8358042	Silicon Stopper, (상 Φ40 / 하 Φ33 mm) / 1L Flask용 ⑦

  • ● 8358042는 1L Flask용
  Optional Glass Funnel for 47mm

  Cat. No	Model	용량	Size
  F03-503-680	8358033	500 ml	Φ80×h180 mm
  F03-503-690	8358034	1 L	Φ115×h180 mm

  Filtering Flask, LukeGL^® ⑩

  Cat. No	Model	용량	Size	Neck id
  F03-503-957	8072255	500 ml	Φ102×h185 mm	Φ31 mm
  F03-503-965	8072310	1 L	Φ125×h235 mm	Φ35 mm
  F03-503-970	8072320	2 L	Φ148×h275 mm	Φ38 mm

  • ● Borocilicate Glass 3.3
  • ● 8072320은 1420-05를 Stopper로 사용
  Filtering Flask, Simax^® ⑪

  Cat. No	Model	용량	Size	Neck id
  F04-985-096	412022250	250 ml	Φ85×h145 mm	Φ35 mm
  F04-985-101	412022500	500 ml	Φ105×h175 mm
  F04-985-105	412022940	1 L	Φ135×h230 mm	Φ45 mm
  F04-985-109	412022950	2 L	Φ165×h255 mm	Φ60 mm

  Silicon Stopper with Hole, 15mm ⑫

  Cat. No	Model	Hole	용도
  F03-132-571	1420-05	Φ15 mm	1 L, Neck id 45 mm용
  F03-132-573	1420-06		2 L, Neck id 60 mm용

  • ● Simax^® Filtering Flask용
