■ 완벽한 Sealing을 위하여 Teflon Bushing이들어있음

■ 반응 도중 압력이 생기는 반응에 적합한 용기임
■ Complete Apparatus : Vessel, Solid Back Seal Teflon Bushing and
Viton O-ring
■ 내열 및 내화학성이 뛰어난 Perfluoro O-ring 또한 공급 가능 (Option)
■ Chemglass

•   Cylindrical Apparatus ①

  Cat. No	Model	Size (mm)	용량	Bushing
  P05-132-107	1880-01	Ø25.4×114	15 ml	#15
  P05-132-114	1880-02	Ø25.4×190	35 ml
  P05-132-121	1880-03	Ø25.4×215	38 ml
  P05-132-128	1880-04	Ø38×114	48 ml
  P05-132-135	1880-05	Ø38×190	100 ml
  P05-132-142	1880-06	Ø38×215	120 ml

  Round Bottom Apparatus ②

  Cat. No	Model	Size (mm)	용량	Bushing
  P05-132-177	1880-40	Ø52×102	75 ml	#25
  P05-132-184	1880-41	Ø63.5×117	150 ml
  P05-132-191	1880-42	Ø82.5×142	350 ml

  Round Bottom Flask Apparatus ③

  Cat. No	Model	Size (mm)	용량	Bushing
  P05-132-222	1880-R01	Ø48×85	28 ml	#25
  P05-132-230	1880-R02	Ø60×100	65 ml
  P05-132-238	1880-R03	Ø85×125	200 ml
  P05-132-246	1880-R04	Ø105×145	420 ml

  Optional Solid Seal Teflon Bushing

  Cat. No	Model	Size (mm)	Size	Viton 규격
  P05-132-511	363-03	Back Seal ④	#15	#110
  P05-132-517	363-05		#25	#212
  P05-132-523	366-12	Front Seal ⑤	#15	#110
  P05-132-529	366-13		#25	#212

  Optional Open Top Front Seal Teflon Bushing

  Cat. No	Model	Opening	Size	Viton 규격
  P05-132-535	362-03	14 mm ⑥	#15	#110
  P05-132-541	362-05	26 mm	#25	#212
  P05-132-547	364-40	NPT 1/8" ⑦	#15	#110
  P05-132-553	364-60		#25	#212

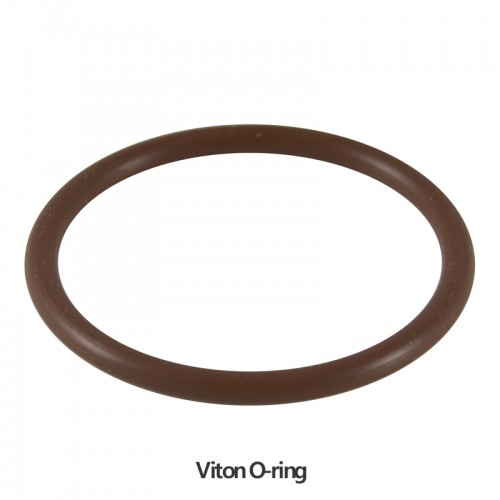

  O-ring for Glass Pressure Vessel

  Cat. No	Model	재질	Size	Viton 규격
  P05-132-559	305-110	Viton / Front용	#15	#110
  P05-132-565	305-212		#25	#212
  P05-132-571	305-210	Viton / Back 용	#15	#210
  P05-132-577	305-220		#25	#220
  P05-132-583	309-110	Perfluoro / Front 용	#15	#110
  P05-132-589	309-212		#25	#212
  P05-132-595	309-210	Perfluoro / Back 용	#15	#210
  P05-132-601	309-220		#25	#220

  • ● Viton : -30 ~ 200℃ 내열, Complete Chemical Resistance
    ● Perfluoro : Max 250℃ 내열, Superior Chemical Resistance
