■ 액상 및 기체상 시료에 모두 사용

■ Plunger 끝에 PTFE Tip이 붙어 있음
■ 테프론 팁이 유리 재질의 몸통과 빈틈없이 밀착하여 Tight한 Sealing 상태를 만들어줌
■ 용도 : Sample 및 Aggressive Fluid의 Dosage
■ Plunger : Stainless Steel with PTFE-seal
■ Glass Barrel : Borosilicate 3.3
■ Precision : <±1% of the Volume
■ ILS
※ 이 제품은 의료용기기가 아닙니다.

•   Fixed Needle Type

  Cat. No.	Model	용량	포함된 Needle Tip
  			Gauge	od	길이
  S15-204-004	2600301	5 ul	26S	0.47 mm	51 mm
  S15-204-010	2600401	10 ul
  S15-204-016	2600501	25 ul	22S (id 0.2mm)	0.72 mm
  S15-204-022	2600601	50 ul
  S15-204-028	2600701	100 ul
  S15-204-034	2600801	250 ul	22 (id 0.4mm)
  S15-204-040	2600901	500 ul
  S15-204-046	2600000	1 ml
  S15-204-052	2600020	2.5 ml
  S15-204-058	2600040	5.0 ml
  S15-204-064	2600060	10.0 ml

  • ● GC, HPLC Valve, Autosampler와 같이 사용가능함
    ● Type A Needle (17˚ Bevel) 기본 포함

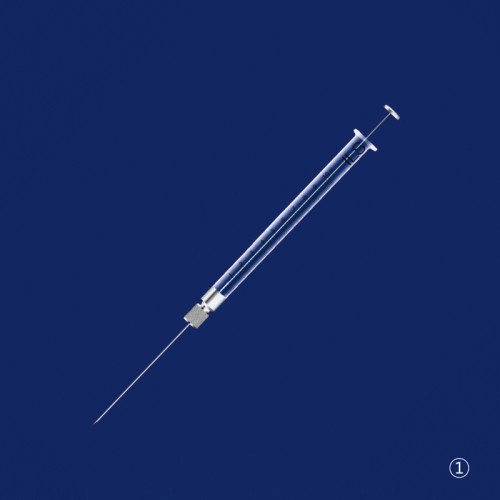

  Removable Needle Type ①

  Cat. No.	Model	용량	포함된 Needle Tip
  			Gauge	od	길이
  S15-204-070	2600305	5 ul	26S	0.47 mm	51 mm
  S15-204-076	2600405	10 ul
  S15-204-082	2600505	25 ul	22S	0.72 mm
  S15-204-088	2600605	50 ul
  S15-204-094	2600705	100 ul
  S15-204-100	2600805	250 ul	22
  S15-204-106	2600905	500 ul
  S15-204-112	2600005	1.0 ml
  S15-204-118	2600025	2.5 ml
  S15-204-124	2600045	5.0 ml
  S15-204-130	2600065	10.0 ml

  • ● GC, HPLC Valve, Autosampler와 같이 사용가능함 (Included Type A Needle)
  Spare Removable Needle ②

  Cat. No.	Model	Gauge	od X 길이	사용 Syringe
  S15-204-704	2865308	26S	0.47 X 42 mm	5 ul
  S15-204-707	2865408			10 ul
  S15-204-710	2832301	26S	0.47 X 51 mm	5 ul
  S15-204-713	2832401			10 ul
  S15-204-716	2831013	24	0.55 X 51 mm	25 ul~ 100 ul
  S15-204-719	2841013			250 ul ~ 10 ml
  S15-204-722	2832501	22S	0.72 x 51 mm	25 ul ~ 100 ul
  S15-204-724	2832601			250 ul ~ 10 ml

  TLL PTFE Luer-Lock ③

  Cat. No.	Model	용량	정밀도
  S15-204-136	2600309	5 ul	<±1% of the Volume
  S15-204-142	2600409	10 ul
  S15-204-148	2607509	25 ul
  S15-204-154	2607609	50 ul
  S15-204-160	2607709	100 ul
  S15-204-166	2607809	250 ul
  S15-204-172	2607909	500 ul
  S15-204-178	2607011	1.0 ml
  S15-204-184	2607031	2.5 ml
  S15-204-190	2607051	5.0 ml
  S15-204-196	2607071	10.0 ml

  • ● Needle은 별도 구매해야 함

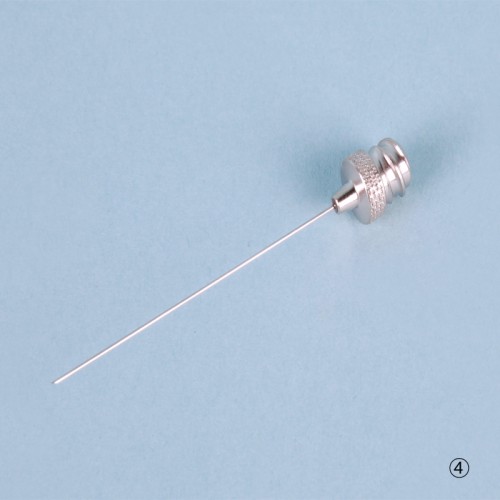

  Metal Luer-lock Needle, Type A ④

  Cat. No.	Model	Gauge	od X id (mm)
  S15-204-804	2840020	33	0.20 X 0.11
  S15-204-808	2840025	32	0.25 X 0.11
  S15-204-812	2840030	30	0.30 X 0.15
  S15-204-816	2840035	29	0.35 X 0.15
  S15-204-820	2840040	27	0.40 X 0.20
  S15-204-824	2840045	26	0.45 X 0.25
  S15-204-828	2840047	26S	0.47 X 0.13
  S15-204-832	2840050	25	0.50 X 0.28
  S15-204-836	2840055	24	0.55 X 0.32
  S15-204-840	2840065	23	0.64 X 0.35
  S15-204-844	2840070	22	0.72 X 0.40
  S15-204-848	2840072	22S	0.72 X 0.20
  S15-204-852	2840080	21	0.80 X 0.50
  S15-204-856	2840090	20	0.90 X 0.60
  S15-204-860	2840100	-	1.00 X 0.68
  S15-204-864	2840110	19	1.10 X 0.80
  S15-204-868	2840130	18	1.30 X 0.90
  S15-204-872	2840150	17	1.50 X 1.10
  S15-204-876	2840170	16	1.70 X 1.20
  S15-204-880	2840180	15	1.80 X 1.40
  S15-204-884	2840200	-	2.00 X 1.26
  S15-204-888	2840240	13	2.40 X 1.90
  S15-204-892	2840280	12	2.80 X 2.20
  S15-204-896	2840302	-	3.00 X 2.06
  S15-204-900	2840304	11	3.00 X 2.40
  S15-204-904	2840340	10	3.40 X 2.70

  • ● 길이 : 51 mm
    ● 재질 : AISI SS304 (Needle), Nickel Plated Brass Luer
